Hidrolik Piston Sızdırmazlık Elemanları
K15
Piston Keçesi
- Malzeme
- PU NBR
- Kodu
- PU9401 NB7001
- Basınç (max) bar
- 250
- Sıcaklık (max) °C
- -30/+100
- Kayma Hızı (max)- m/s
- 0.5
Avantajları
- Statik ve dinamik durumlarda yüksek sızdırmazlık
- Basit ve az yer kaplayan, ISO 7425-1'e uygun kanal tasarımı
- Düşük ilerleme hızlarında dahi titreşimsiz hareket kabiliyeti
- Ekonomik çözüm
- Kolay montaj yapılabilmesi
Uygulama Alanları
- Araç üstü sektörü
- Enjeksiyon tezgahları
- Forkliftler
- Tarım sektörü
- Genel endüstriyel silindirler

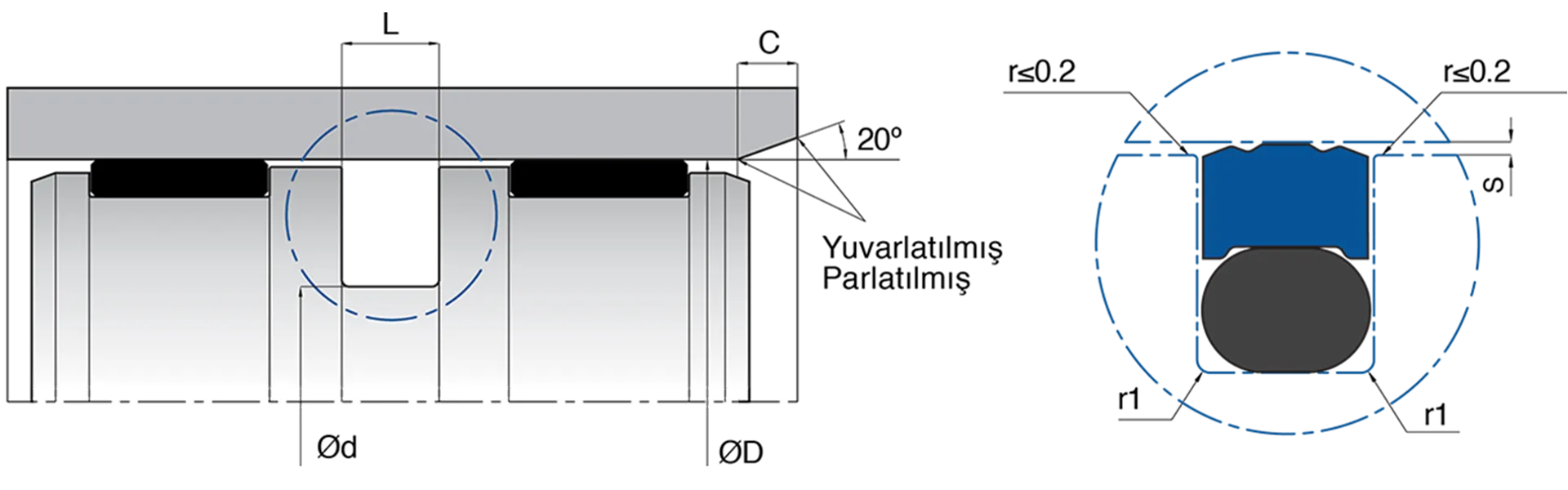

Teknik Çizim
Ölçü Tablosu
60 ölçü · Kod veya ölçü ile filtreleyin
Akma boşluğu (S) tablosu için tıklayınız
60 sonuç
| Kod | D (H9) | d (h9) | L (+0.2/-0) | r1 | C | O-Ring | MALZEME | KASTAŞ KOD | |
|---|---|---|---|---|---|---|---|---|---|
| K15 015-007.5 | 15 | 7.5 | 3.2 | 0.6 | 3 | 7.60x2.62 | PU9401 | 10002298 | — |
| K15 057.15-046.15 | 2,25 | 1,817 | 0,165 | 1 | 0,039 | 0,177 | PU9401 | 10002322 | — |
| K15 016-008.5 | 16 | 8.5 | 3.2 | 0.6 | 3 | 7.60x2.62 | PU9401 | 10002299 | — |
| K15 063.5-052.5 | 2,5 | 2,067 | 0,165 | 0,039 | 0,177 | 46.04x3.53 | PU9401 | 10002325 | — |
| K15 020-012.5 | 20 | 12.5 | 3.2 | 0.6 | 3 | 11.91x2.62 | PU9401 | 10002300 | — |
| K15 022-014.5 | 22 | 14.5 | 3.2 | 0.6 | 3 | 13.95x2.62 | PU9401 | 10002301 | — |
| K15 025-014 | 25 | 14 | 4.2 | 1 | 4.5 | 13.87x3x53 | PU9401 | 10002302 | — |
| K15 025-017.5 | 25 | 17.5 | 3.2 | 0.6 | 3 | 17.13x2.62 | PU9401 | 10002303 | — |
| K15 030-022.5 | 30 | 22.5 | 3.2 | 0.6 | 3 | 21.89x2.62 | PU9401 | 10002304 | — |
| K15 032-021 | 32 | 21 | 4.2 | 1 | 4.5 | 20.22x3x53 | PU9401 | 10002305 | — |
| K15 032-024.5 | 32 | 24.5 | 3.2 | 0.6 | 3 | 23.81x2.62 | PU9401 | 10002306 | — |
| K15 035-027.5 | 35 | 27.5 | 3.2 | 0.6 | 3 | 26.64x2.62 | PU9401 | 10002307 | — |
| K15 038-030.5 | 38 | 30.5 | 3.2 | 0.6 | 3 | 29.82x2.62 | PU9401 | 10002308 | — |
| K15 040-024.5 | 40 | 24.5 | 6.3 | 1.3 | 6 | 23.17x5.33 | PU9401 | 10002309 | — |
| K15 040-029 | 40 | 29 | 4.2 | 1 | 4.5 | 28.17x3.53 | PU9401 | 10002310 | — |
| K15 040-032.5 | 40 | 32.5 | 3.2 | 0.6 | 3 | 31.42x2.62 | PU9401 | 10002311 | — |
| K15 045-029.5 | 45 | 29.5 | 6.3 | 1.3 | 6 | 29.51x5.33 | PU9401 | 10002312 | — |
| K15 045-034 | 45 | 34 | 4.2 | 1 | 4.5 | 32.92x3.53 | PU9401 | 10002313 | — |
| K15 048-037 | 48 | 37 | 4.2 | 1 | 4.5 | 36.1x3.53 | PU9401 | 10002314 | — |
| K15 049-038 | 49 | 38 | 4.2 | 1 | 4.5 | 37.69x3.53 | PU9401 | 10002315 | — |
| K15 050-034.5 | 50 | 34.5 | 6.3 | 1.3 | 6 | 32.69x5.33 | PU9401 | 10002316 | — |
| K15 050-039 | 50 | 39 | 4.2 | 1 | 4.5 | 37.69x3.53 | PU9401 | 10002317 | — |
| K15 052-036.5 | 52 | 36.5 | 6.3 | 1.3 | 6 | 34.29x5.33 | PU9401 | 10002318 | — |
| K15 054-043 | 54 | 43 | 4.2 | 1 | 4.5 | 42.86x3.53 | PU9401 | 10002319 | — |
| K15 055-039.5 | 55 | 39.5 | 6.3 | 1.3 | 6 | 37.47x5.33 | PU9401 | 10002320 | — |
| K15 055-044 | 55 | 44 | 4.2 | 1 | 4.5 | 42.86x3.53 | PU9401 | 10002321 | — |
| K15 060-044.5 | 60 | 44.5 | 6.3 | 1.3 | 6 | 43.82x5.33 | PU9401 | 10002323 | — |
| K15 060-049 | 60 | 49 | 4.2 | 1 | 4.5 | 47.63x3.53 | PU9401 | 10002324 | — |
| K15 063-047.5 | 63 | 47.5 | 6.3 | 1.3 | 6 | 47x5.33 | PU9401 | 10002326 | — |
| K15 063-052 | 63 | 52 | 4.2 | 1 | 4.5 | 50.8x3.53 | PU9401 | 10002327 | — |
| K15 065-049.5 | 65 | 49.5 | 6.3 | 1.3 | 6 | 47x5.33 | PU9401 | 10002329 | — |
| K15 065-054 | 65 | 54 | 4.2 | 1 | 4.5 | 52.39x3.53 | PU9401 | 10002330 | — |
| K15 070-054.5 | 70 | 54.5 | 6.3 | 1.3 | 6 | 53.34x5.33 | PU9401 | 10002331 | — |
| K15 070-059 | 70 | 59 | 4.2 | 1 | 4.5 | 57.15x3.53 | PU9401 | 10002332 | — |
| K15 075-059.5 | 75 | 59.5 | 6.3 | 1.3 | 6 | 56.52x5.33 | PU9401 | 10002333 | — |
| K15 075-064 | 75 | 64 | 4.2 | 1 | 4.5 | 63.09x3.53 | PU9401 | 10002334 | — |
| K15 080-059 | 80 | 59 | 8.1 | 1.8 | 8 | 58x6.99 | PU9401 | 10002335 | — |
| K15 080-064.5 | 80 | 64.5 | 6.3 | 1.3 | 6 | 62.87x5.33 | PU9401 | 10002336 | — |
| K15 080-069 | 80 | 69 | 4.2 | 1 | 4.5 | 68.26x3.53 | PU9401 | 10002337 | — |
| K15 085-069.5 | 85 | 69.5 | 6.3 | 1.3 | 6 | 69.22x5.33 | PU9401 | 10002338 | — |
| K15 090-074.5 | 90 | 74.5 | 6.3 | 1.3 | 6 | 72.4x5.33 | PU9401 | 10002339 | — |
| K15 095-079.5 | 95 | 79.5 | 6.3 | 1.3 | 6 | 78.74x5.33 | PU9401 | 10002340 | — |
| K15 100-084.5 | 100 | 84.5 | 6.3 | 1.3 | 6 | 81.92x5.33 | PU9401 | 10002341 | — |
| K15 100-089 | 100 | 89 | 4.2 | 1 | 4.5 | 85.32x3.53 | PU9401 | 10002342 | — |
| K15 105-089.5 | 105 | 89.5 | 6.3 | 1.3 | 6 | 88.27x5.33 | PU9401 | 10002343 | — |
| K15 110-094.5 | 110 | 94.5 | 6.3 | 1.3 | 6 | 91.44x5.33 | PU9401 | 10002344 | — |
| K15 115-094 | 115 | 94 | 8.1 | 1.8 | 8 | 92x6.99 | PU9401 | 10002345 | — |
| K15 115-099.5 | 115 | 99.5 | 6.3 | 1.3 | 6 | 97.80x5.33 | PU9401 | 10002346 | — |
| K15 120-104.5 | 120 | 104.5 | 6.3 | 1.3 | 6 | 104.14x5.33 | PU9401 | 10002348 | — |
| K15 125-104 | 125 | 104 | 8.1 | 1.8 | 8 | 102x6.99 | PU9401 | 10002349 | — |
| K15 125-109.5 | 125 | 109.5 | 6.3 | 1.3 | 6 | 107.32x5.33 | PU9401 | 10002350 | — |
| K15 130-114.5 | 130 | 114.5 | 6.3 | 1.3 | 6 | 110.49x5.33 | PU9401 | 10002351 | — |
| K15 135-114 | 135 | 114 | 8.1 | 1.8 | 8 | 113.67x6.99 | PU9401 | 10002352 | — |
| K15 140-119 | 140 | 119 | 8.1 | 1.8 | 8 | 116.84x6.99 | PU9401 | 10002353 | — |
| K15 150-129 | 150 | 129 | 8.1 | 1.8 | 8 | 126.37x6.99 | PU9401 | 10002355 | — |
| K15 160-139 | 160 | 139 | 8.1 | 1.8 | 8 | 135.9x6.99 | PU9401 | 10002356 | — |
| K15 170-149 | 170 | 149 | 8.1 | 1.8 | 8 | 145.42x6.99 | PU9401 | 10002357 | — |
| K15 180-159 | 180 | 159 | 8.1 | 1.8 | 8 | 155.6x6.99 | PU9401 | 10002358 | — |
| K15 200-179 | 200 | 179 | 8.1 | 1.8 | 8 | 177.17x6.99 | PU9401 | 10002360 | — |
| K15 250-229 | 250 | 229 | 8.1 | 1.8 | 8 | 227.97x6.99 | PU9401 | 10002361 | — |
